Hager h3+ MCCBs in Malaysia

PAN-METRIC CONTROLS SDN. BHD. supplies Hager h3+ moulded case circuit breakers (MCCBs) and accessories in Malaysia. Browse 3-pole and 4-pole options across P160, P250 and P630 frame sizes. The product tables show model codes, current ratings and breaking capacities. Contact our team to confirm availability and request a quotation.

Why Buy Hager from PMC?

Our team helps customers source Hager products against their project specifications. Share the model code, current rating, number of poles, breaking capacity and quantity so we can assist with product enquiries and quotation requests.

Local Support in Kuala Lumpur and Johor Bahru

With locations in Kuala Lumpur and Johor Bahru, PMC supports local electrical component enquiries. Contact our team with your Hager model list and quantities to discuss sourcing and request a quotation.

Ready stock. WhatsApp us to confirm quantity and pricing.

h3+ MCCBs

Delight the style

The h3e MCCB range perfectly meets reliability requirements for main incoming devices in commercial premises; strength, reliability, efficient protection and standards compliant selections.

The style is reminiscent the H3 range and is perfectly integrated in the MCCB Hager offer.

With configurations of 3 and 4 pole offered across the range, all sizes of MCCB’s have an extensive range of internal and external accessories available such as; auxiliary switches, shunt trips, undervoltage releases, terminal kits, and rotary handles.

Hager Malaysia

More choice – over 200 vari­ants

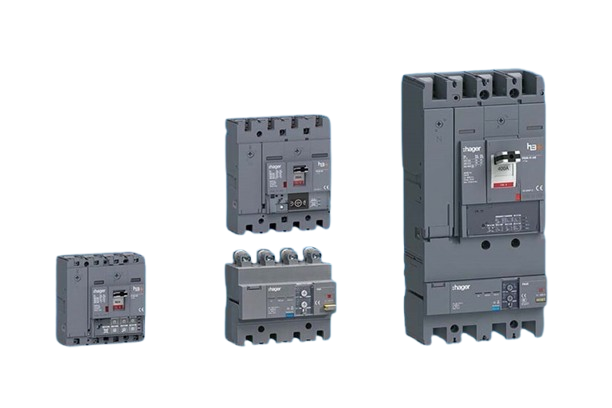

Feat­uring the compact frame sizes, avai­lable from 25 to 630 A with 3 or 4 poles, the h3+ provides supe­rior prot­ection and a brea­king capacity up to 110kA. From the trad­it­i­onal version to the inte­l­li­gent conn­ected model: disc­over the multi-faceted range of h3+ circuit brea­kers.

h3+/P160 110 variants

h3+/P250 76 variants

h3+/P630 24 variants

Hager h3+ MCCB breaker comparison

ItemTMMAGLSnILSIEnergy
P160P250P160P250P160P250P160P250P630P160P250P630
Breaking capacity25, 50 or 70kA25, 50 or 70kA50 or 70kA50 or 70kA50 or 70kA50 or 70kA50 or 70kA50 or 70kA40, 50, 70, 110kA50 or 70kA50 or 70kA40, 50, 70, 110kA
Ratings25 -160 A50 – 250 A25 -160 A100 – 250 A40 – 160 A40 – 250 A40 – 160 A40 – 250 A250 – 630 A40 – 160 A40 – 250 A250 – 630 A
No. of poles (P) & trip units (D)3P3D or 4P4D (N: 0 -100%)3P3D or 4P4D (N: 0 -100%)3P3D or 4P4D3P3D or 4P4D3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D ( N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)3P3D or 4P4D (N: 0, 50 or 100%)
RCD add-on blockNoYesNoYesNoYesNoYesYesNoYesYes
Configuration tool—————————YesYesYes
Panel display—————————YesYesYes
Communicating version—————————YesYesYes

18KA @ 400Vac MCCB

 ModelDescription
MCCB 3P x160HDA016PMCCB X160 3P 18kA 16A
MCCB 3P x160HDA020PMCCB X160 3P 18kA 20A
MCCB 3P x160HDA025PMCCB X160 3P 18kA 25A
MCCB 3P x160HDA032PMCCB X160 3P 18kA 32A
MCCB 3P x160HDA040PMCCB X160 3P 18kA 40A
MCCB 3P x160HDA050PMCCB X160 3P 18kA 50A
MCCB 3P x160HDA063PMCCB X160 3P 18kA 63A
MCCB 3P x160HDA080PMCCB X160 3P 18kA 80A
MCCB 3P x160HDA100PMCCB X160 3P 18kA 100A
MCCB 3P x160HDA125PMCCB X160 3P 18kA 125A
MCCB 3P x160HDA160PMCCB X160 3P 18kA 160A

25KA @ 400Vac MCCB

25KA @ 400Vac MCCBModelDescription
MCCB 3P x160HHA016PMCCB X160 3P 25kA 16A
MCCB 3P x160HHA020PMCCB X160 3P 25kA 20A
MCCB 3P x160HHA025PMCCB X160 3P 25kA 25A
MCCB 3P x160HHA032PMCCB X160 3P 25kA 32A
MCCB 3P x160HHA040PMCCB X160 3P 25kA 40A
MCCB 3P x160HHA063PMCCB X160 3P 25kA 63A
MCCB 3P x160HHA080PMCCB X160 3P 25kA 80A
MCCB 3P x160HHA100PMCCB X160 3P 25kA 100A
MCCB 3P x160HHA125PMCCB X160 3P 25kA 125A
MCCB 3P x160HHA160PMCCB X160 3P 25kA 160A
MCCB 3P x250HHB200ZMCCB X250 3P 25kA 200A TM
MCCB 3P x250HHB250ZMCCB X250 3P 25kA 250A TM

40KA @ 400Vac MCCB

40KA @ 400Vac MCCBModelDescription
MCCB 3P x160HNA016PMCCB x160 3P 40kA 16A
MCCB 3P x160HNA020PMCCB x160 3P 40kA 20A
MCCB 3P x160HNA025PMCCB x160 3P 40kA 25A
MCCB 3P x160HNA032PMCCB x160 3P 40kA 32A
MCCB 3P x160HNA040PMCCB x160 3P 40kA 40A
MCCB 3P x160HNA050PMCCB x160 3P 40kA 50A
MCCB 3P x160HNA063PMCCB x160 3P 40kA 63A
MCCB 3P x160HNA080PMCCB x160 3P 40kA 80A
MCCB 3P x160HNA100PMCCB x160 3P 40kA 100A
MCCB 3P x160HNA125PMCCB x160 3P 40kA 125A
MCCB 3P x160HNA160PMCCB x160 3P 40kA 160A
MCCB 3P x250HNB200ZMCCB x250 3P 40kA 200A TM
MCCB 3P x250HNB250ZMCCB x250 3P 40kA 250A TM

50KA @ 400Vac MCCB 3P

50KA @ 400Vac MCCB 3PModelDescription
MCCB h3e 3P h400eHND300PMCCB 300A TM F/F 50kA 3P
MCCB h3e 3P h400eHND400PMCCB 400A TM F/F 50kA 3P
MCCB h3e 3P h800eHNE500PMCCB 500A TM F/F 50kA 3P
MCCB h3e 3P h800eHNE630PMCCB 630A TM F/F 50kA 3P
MCCB h3e 3P h800eHNE800PMCCB 800A TM F/F 50kA 3P

50KA @ 400Vac MCCB 4P

50KA @ 400Vac MCCB 4PModelDescription
MCCB h3e 4P h400eHND301PMCCB 300A TM F/F 50kA 4P
MCCB h3e 4P h400eHND401PMCCB 400A TM F/F 50kA 4P
MCCB h3e 4P h800eHNE501PMCCB 500A TM F/F 50kA 4P
MCCB h3e 4P h800eHNE631PMCCB 630A TM F/F 50kA 4P
MCCB h3e 4P h800eHNE801PMCCB 800A TM F/F 50kA 4P

Shunt Trip

Shunt Trip3P
HXA004H-220-240VX160
HXA004H-220-240VX250
HXC004H-220-240VH250
HXC004H-220-240VH400-H630
HXC004H-220-240VH1000
HXC004H-220-240VH1600
